[RE-wrenches] Recording Volt Meter

[Christopher Warfel]

We use Egauge with good success.  Their technical support has been very
good in the past but I haven't had to use them in a year or so. They are
a high end product so more expensive than some other options, but you
can move them around to various sites easily.  You can also hook them up
permanently. I have had one for at least five years now on my system.

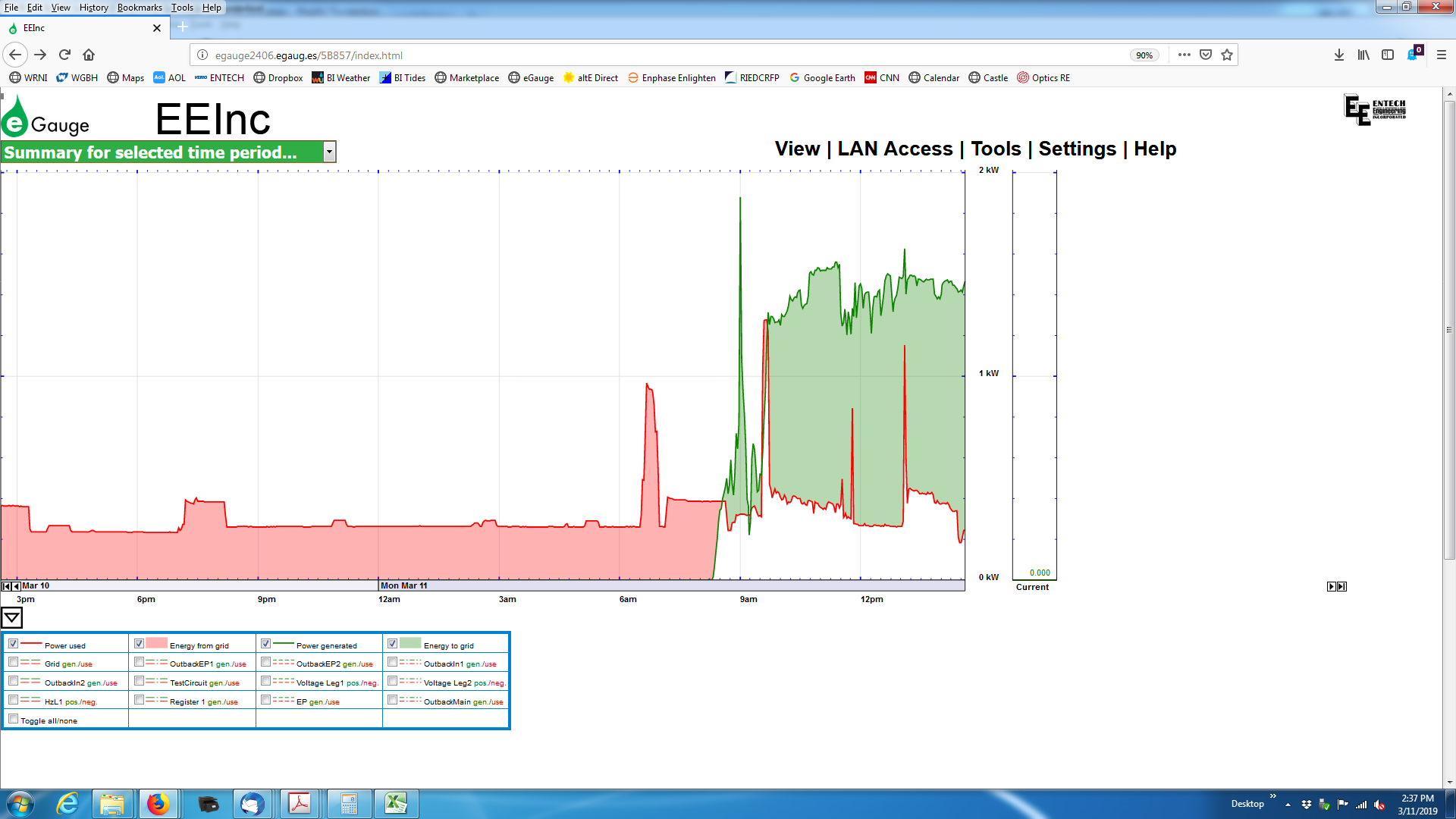

Here is what is happening on my system now.  Chris

On 3/11/2019 11:19 AM, Bill Hennessy wrote:
> Hey Darryl--
>
> Great idea on the eGauge. Is it somewhat easy to set up for us older,
> electrical coots with limited nework experience? Work in a rural area
> with not so smart utility meters and knowing peak demand and kWh loads
> would be a big help in setting up storage systems that would do the
> job without over spending.
>
> Would it be possible to hook it up at a house on a regular basis when
> it is not being used for a job?
>
>
>
> Bill Hennessy
> Berks Solar, LLC
> 371 Centennial Rd
> Mertztown, PA 19539
>
> o 610 682 4300
> c 484 560 4666
> NABCEP certified installer
> PA contractor #44411
> www.berkssolar.com
>
>
> On Monday, March 4, 2019, 6:33:06 PM EST, Darryl Thayer
> <darylsolar1 at gmail.com> wrote:
>
>
> I use an Egauge which has 4 voltage inputs and 15 current inputs.
> I go to sites and set up a recording that can do AC or DC voltages and
> currents. I use this to analyze system and commercial and residential
> energy & power.  It can record one a 1-second basis or a one-minute or
> 5-min bases for years.   .
>
> On Mon, Mar 4, 2019 at 11:45 AM Drake
> <drake.chamberlin at redwoodalliance.org
> <mailto:drake.chamberlin at redwoodalliance.org>> wrote:
>
>     Hello Wrenches,
>
>     Does anyone know of a source for a reliable, yet inexpensive
>     recording volt meter?
>
>     Thank you,
>
>     Drake
>
>     Drake Chamberlin
>     /Athens Electric LLC
>     OH License 44810
>     CO License 3773
>     NABCEP Certified Solar PV
>     740-448-7328
>     /http://athens-electric.com/
>
