Hi all,

I'm looking for some ideas for attaching modules to a curved carport

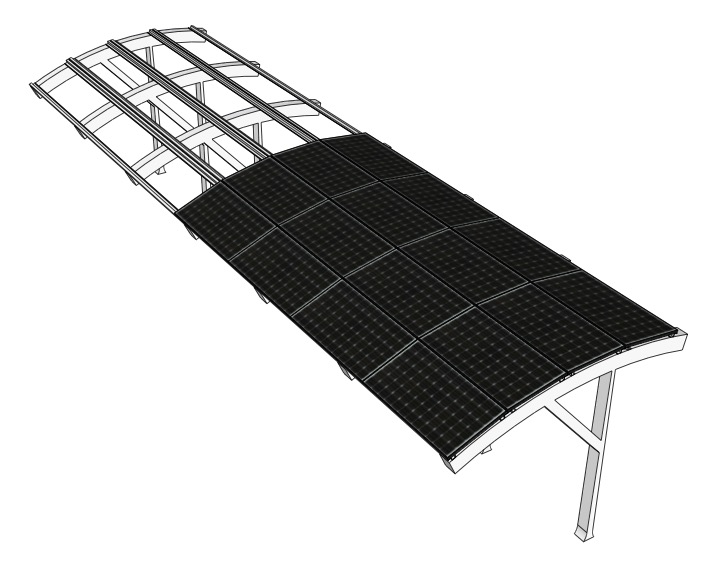

system. I attached a concept drawing. I'm pretty dead-set on through
bolting to the frames, but bottom clips would probably work if using an
off-the-shelf rail system. Any products or picture you can supply would be
very helpful.

The uprights pictured are already determined. It's a 20' radius curve. I'm
assuming it will be steel tube bent to that radius. The total length will
be much longer than what is pictured. The general contractor is willing to
entertain any welded or bolted solution for the structure.

Thanks!

Jason Szumlanski
Florida Solar Design Group
