[RE-wrenches] Cell Cracks

[Dave Tedeyan]

Ray,
I have seen this many times while servicing systems. I have not noticed it
cause any issues,
at least for modules that are 3-8 years old. On one site, I too did an IR
scan and even curve
traced modules showing this, and there was no difference compared to other
nearby modules

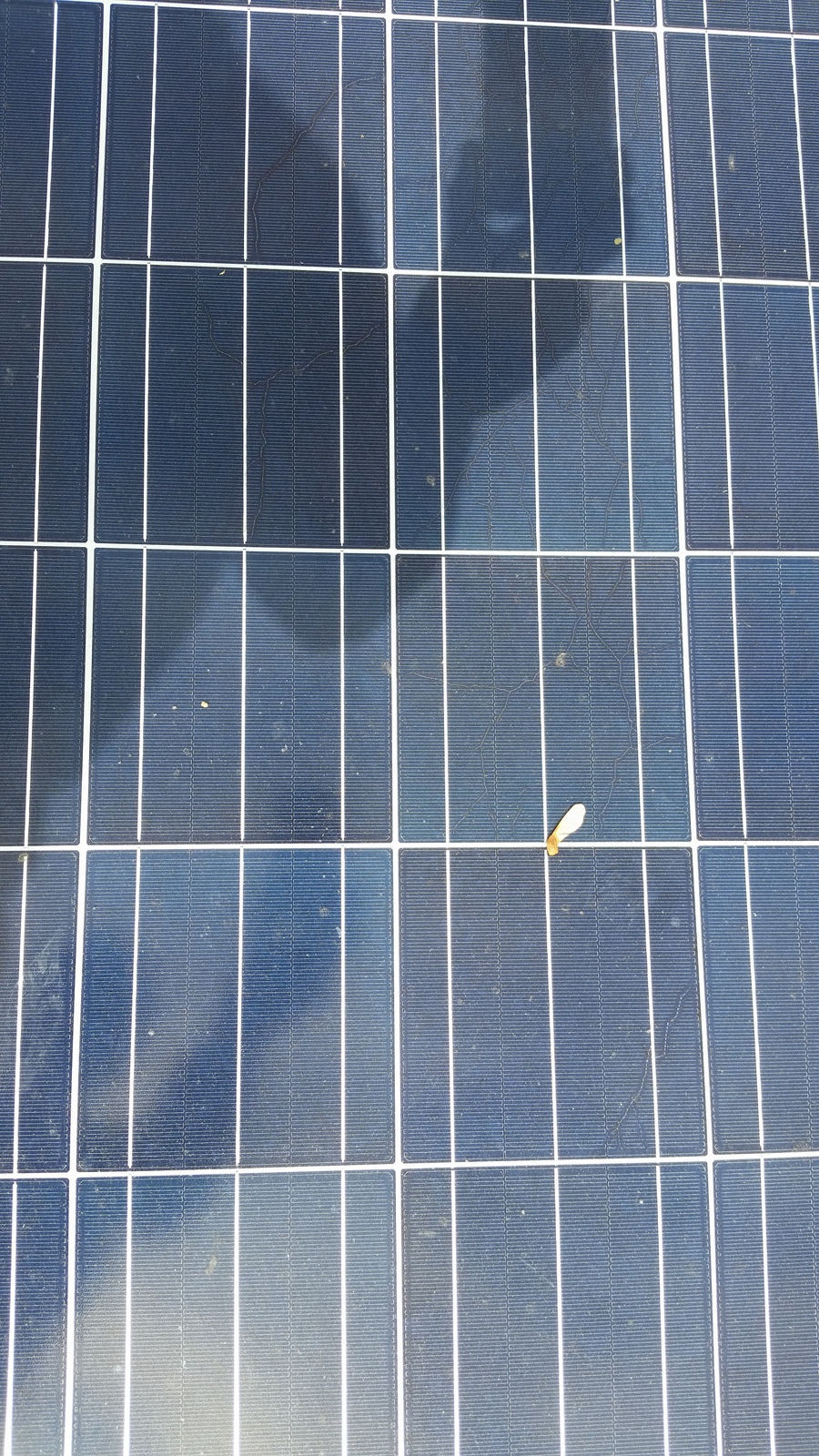

that did not show this cracking. The attached photo is what I have seen a
lot of. It is very similar
although not exactly the same as the pattern your photos show. (you may
need to zoom in to
see it).

Cheers,
Dave


*Dave Tedeyan*
Senior Engineer | Taitem Engineering, PC

10 Verizon Lane | Lansing, NY 14882
o. *607.930.3481* x6  f. 607.277.2119
www.taitem.com

Solar • Sustainability • Energy • Design
B-Corporation Best for the World 2018 Honoree

On Tue, Aug 14, 2018 at 10:23 AM, Ray <ray at solarray.com> wrote:

> Hi All;
>
> I've had a colleague ask that I post a couple pictures of what appears to
> be cracks in cells under the glass.  The glass is not damaged.  These are
> Sun Edison modules, so apparently no warranty.  Has anyone seen this, and
> are these possibly dangerous (hot spots) or is this nothing to worry
> about?  An Infrared camera did not show any issues.
>
> As always your invaluable input is always appreciated.
>
> Thanks,
>
> --
> Ray Walters
> Remote Solar
> 303 505-8760
>
>
