Is all the polishing done on the outside of the display?  You'd think
the folks at SMA could have used glass.  I've had my local glass guy cut
me special sized UV/automotive glass that I then secure to the inside of
the indentation around the display window with 3M 2-sided outdoor-rated
tape, costs ~$12.  Those have only been out there for about 5 years,
I'll report back in another 5 years .

             I also just started using a UV rated window 'film' which is
similar to the that little strip of plastic you peel off the display of
an SBX.0-40 after installation.....maybe we should leave that factory
plastic strip on!?

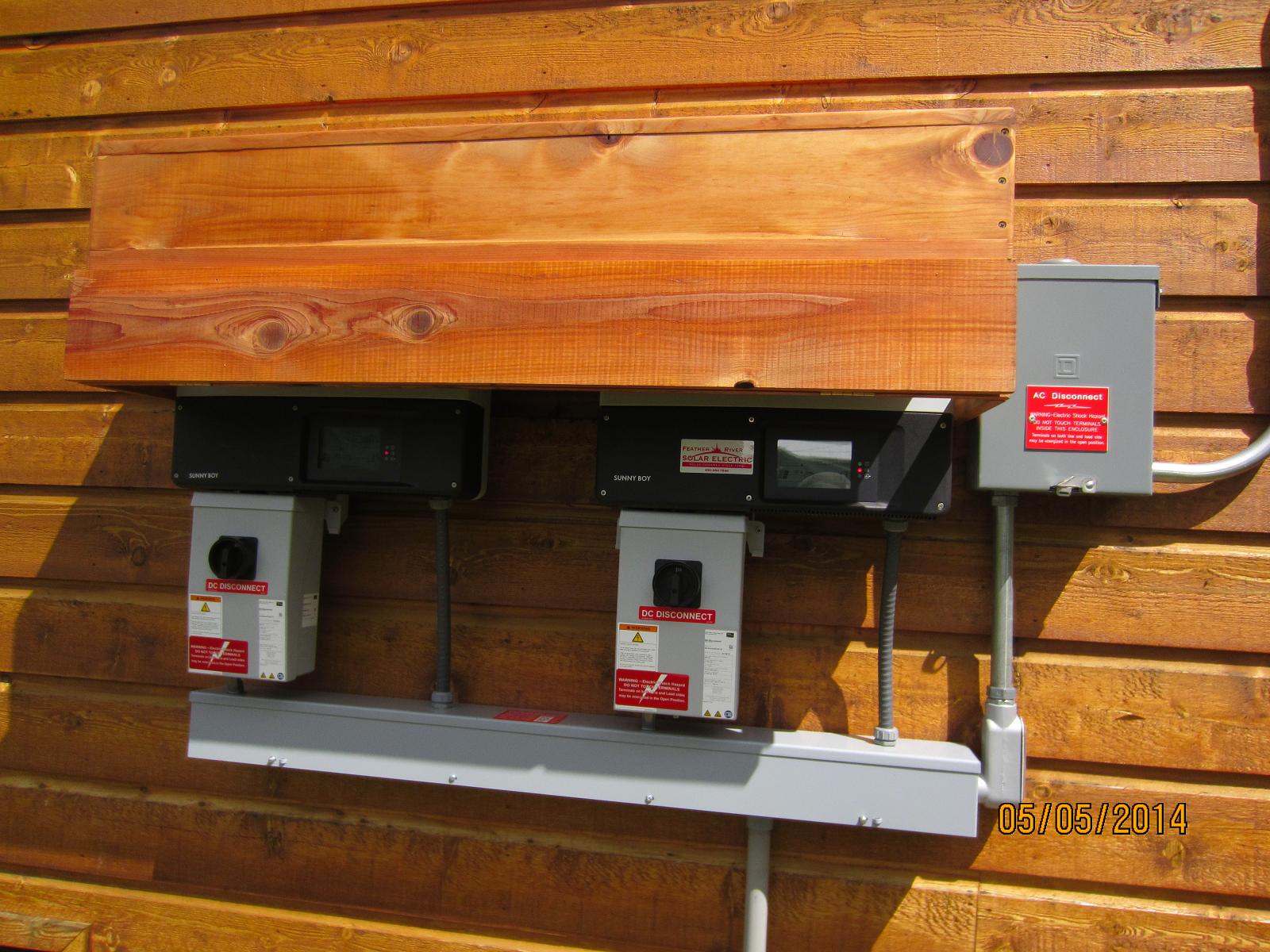

             Occasionally , we go nuts and build a very well vented
cabinet around it.  In the pic, that lower board hinges down over display

Bill

Feather River Solar Electric
Bill Battagin, Owner
4291 Nelson St.
Taylorsville, CA 95983
530.284.7849
CA Lic 874049
www.frenergy.net


On 5/11/2018 4:52 PM, Chris Mason wrote:
> I now put HVAC foil tape over all windows to keep the sun off when I
> install.
>
> On Fri, May 11, 2018 at 4:00 PM, Ray <ray at solarray.com
> <mailto:ray at solarray.com>> wrote:
>
>     I've also used some special 3M sanding pads that go up to 10,000
>     grit.  They are used for polishing airplane wind shields.  Enough
>     elbow grease, you can get any result you want.
>
>     Ray Walters
>     Remote Solar
>     303 505-8760
>
>

--



---
