[RE-wrenches] for all you Aquion installers

[Tom Duffy]

We have a situation with a customer's Aquion (Understand there's now longer a warranty) I spent some hours looking at the Aquions. I tested the voltage of each cell. 4 out of the 6 stacks  had a cell that was low, in the range of 0, 3, 4, volts, while all the rest were above 6.

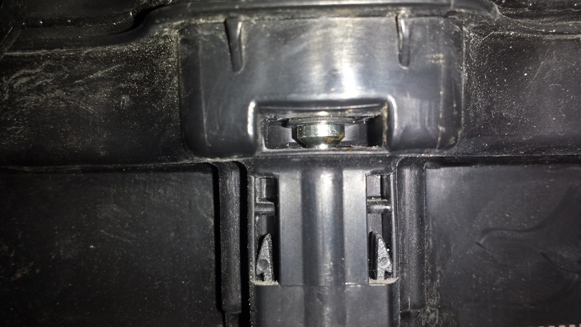

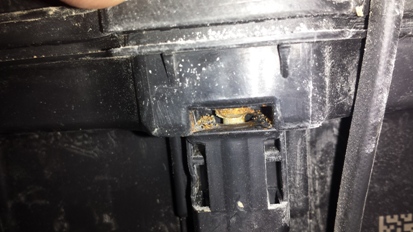

Each of the cells has a test point above the connector. The cells that were low each have corrosion on the positive terminal, such as you see in the photo. Any ideas as to what is causing this? Has anyone seen this before?


Kind regards

Tom Duffy
Senior Solar Design Engineer


E-Mail: tom at solar-biz.com
Main Number: 888-826-0939
Panama Office: 507-836-5588 X 122
Direct Toll Free: 888-503-6772
International: 575-539-2111 X 122
SKYPE Address: thesolarbiz (e-mail first)

-------------- next part --------------
A non-text attachment was scrubbed...
Name: Cell-corrosion-2.jpg
Type: image/jpeg
Size: 58875 bytes
Desc: Cell-corrosion-2.jpg
URL: <http://lists.re-wrenches.org/pipermail/re-wrenches_lists.re-wrenches.org/attachments/20180130/5e7cc9dd/attachment.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Cell-corrosion-1-small.jpg
Type: image/jpeg
Size: 96436 bytes
Desc: Cell-corrosion-1-small.jpg
URL: <http://lists.re-wrenches.org/pipermail/re-wrenches_lists.re-wrenches.org/attachments/20180130/5e7cc9dd/attachment-0001.jpg>
