[RE-wrenches] Schneider 600volt Charge Controller

[Dave Angelini Offgrid Solar]

You should use the Schneider 600 -80A controller in an XW system. All the
data will be as a system and it will be easy for you wire and easier to
make changes later if the system grows. I did the beta testing for
Schneider on this in 2010 and have used about 90 of them. I often load 6KW

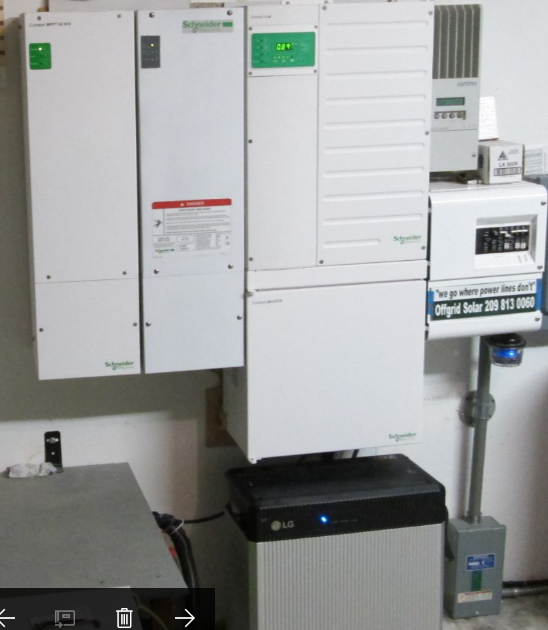

of solar in. Oh yes, none have failed. They are built like a tank! Pix
attached, will it work?

> Hi All,
> Anyone have feedback/review of the 600 volt Schneider Charge Controller
> that they'd care to share?  I have an existing Conext XW+ off-grid system
> with combox communication setup which currently has about 1.5 kW of solar
> feeding through 2 MX60s (no hub). We'll be adding about 5kW (on a TPM
> about
> 150' away) and I'm trying to decide if overall it would be better to use
> the Schneider 600v (which I haven't used before, although I have serviced
> the 150v XW with no real complaints).  Typically I would use a Classic200,
> but given the ability to integrate with the XW6848 and communicate through
> the Combox for more offsite visibility, I'm considering the Schneider, but
> only if it's not going to provide me with the benefit of added service
> calls.
> TIA!
> Howie
> _______________________________________________
> List sponsored by Redwood Alliance
>
> List Address: RE-wrenches at lists.re-wrenches.org
>
> Change listserver email address & settings:
> http://lists.re-wrenches.org/options.cgi/re-wrenches-re-wrenches.org
>
> List-Archive:
> http://www.mail-archive.com/re-wrenches@lists.re-wrenches.org/maillist.html
>
> List rules & etiquette:
> www.re-wrenches.org/etiquette.htm
>
> Check out or update participant bios:
> www.members.re-wrenches.org
>
>


Dave Angelini Offgrid Solar
"we go where powerlines don't"
http://members.sti.net/offgridsolar/
e-mail  offgridsolar at sti.net
text 209 813 0060
