[RE-wrenches] Fuses for battery busbars

[jay]

do you mean like this?


https://www.delcity.net/store/fuses-fuse-accessories/taps/marine-rated-battery-fuses/?mkwid=&crid=&mp_kw=&mp_mt=&gad_source=1&gad_campaignid=18195815732&gbraid=0AAAAAD-3-ftBrJhT7rwpLMbxfXZIuexqw

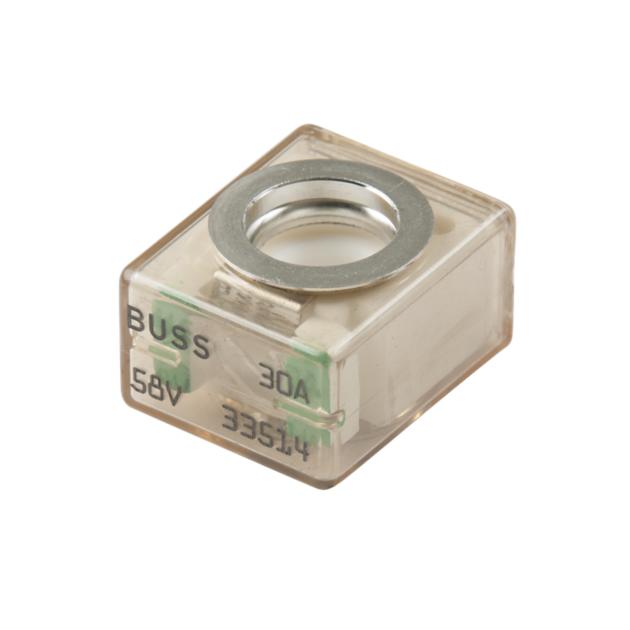

Marine Rated Battery Fuses
delcity.net


> On Nov 15, 2025, at 4:10 PM, Tyrone Houck via RE-wrenches <re-wrenches at lists.re-wrenches.org> wrote:
>
> I think I found what I was picturing...has anyone used Marine Rated Battery Fuses/terminal fuses in a battery combiner situation? Or would I be better off just bolting a class T fuse in between my lug and busbar.. the class T almost seems stronger but with more exposed metal..
> This application isn't specific to a certain busbar but for discussion sake picture 4 batteries landing on a MNBCB 1000/2000
>
>
>
>
> On Sat, Nov 15, 2025, 3:00 PM Tyrone Houck <tyronehouck at gmail.com <mailto:tyronehouck at gmail.com>> wrote:
>> Yeah. I'm looking for something with a smaller footprint, ideally with one hole that physically goes between the lug and post.. I've seen them but can't remember the manufacturer.. I guess I could bolt a class T to the busbar and float the other end and just bolt the lug to it..
>>
>>
>>
>>
>> On Sat, Nov 15, 2025, 2:39 PM jay via RE-wrenches <re-wrenches at lists.re-wrenches.org <mailto:re-wrenches at lists.re-wrenches.org>> wrote:
>>> I’m not sure what buss bar you have but have you looked at Class T fuses?
>>>
>>> jay
>>>
>>>> On Nov 15, 2025, at 3:11 PM, Tyrone Houck via RE-wrenches <re-wrenches at lists.re-wrenches.org <mailto:re-wrenches at lists.re-wrenches.org>> wrote:
>>>>
>>>> Greetings Wrenches,
>>>> I am looking for a product that allows a 250A fuse to be added at the post connection of a battery busbar. Specifically, nominal 48v combiner busbar for multiple lifepo4 batteries. What I really want is something that can be added right at the connection point of the busbar where the lug attaches to the busbar. Compact form function helps...something similar to a "fusible link" type thing but not cheap junk and rated for 50-60v. I like the little fuses that victron uses in their battery but want something that can retrofit into a conventional battery busbar. I appreciate any suggestions! Thank you in advance!
>>>> Sunny Regards,
>>>>
>>>> Tyrone Houck
>>>> Oregon Solarworks LLC
>>>> CCB #204937 LRT #076
>>>> 541-787-1366
>>>> tyrone at oregonsolarworks.com <mailto:tyrone at oregonsolarworks.com>
>>>>
>>>>
>>>>
