[RE-wrenches] Multiple Rosie Installs

[Sue Stankevitz]

Hi Jeremy,

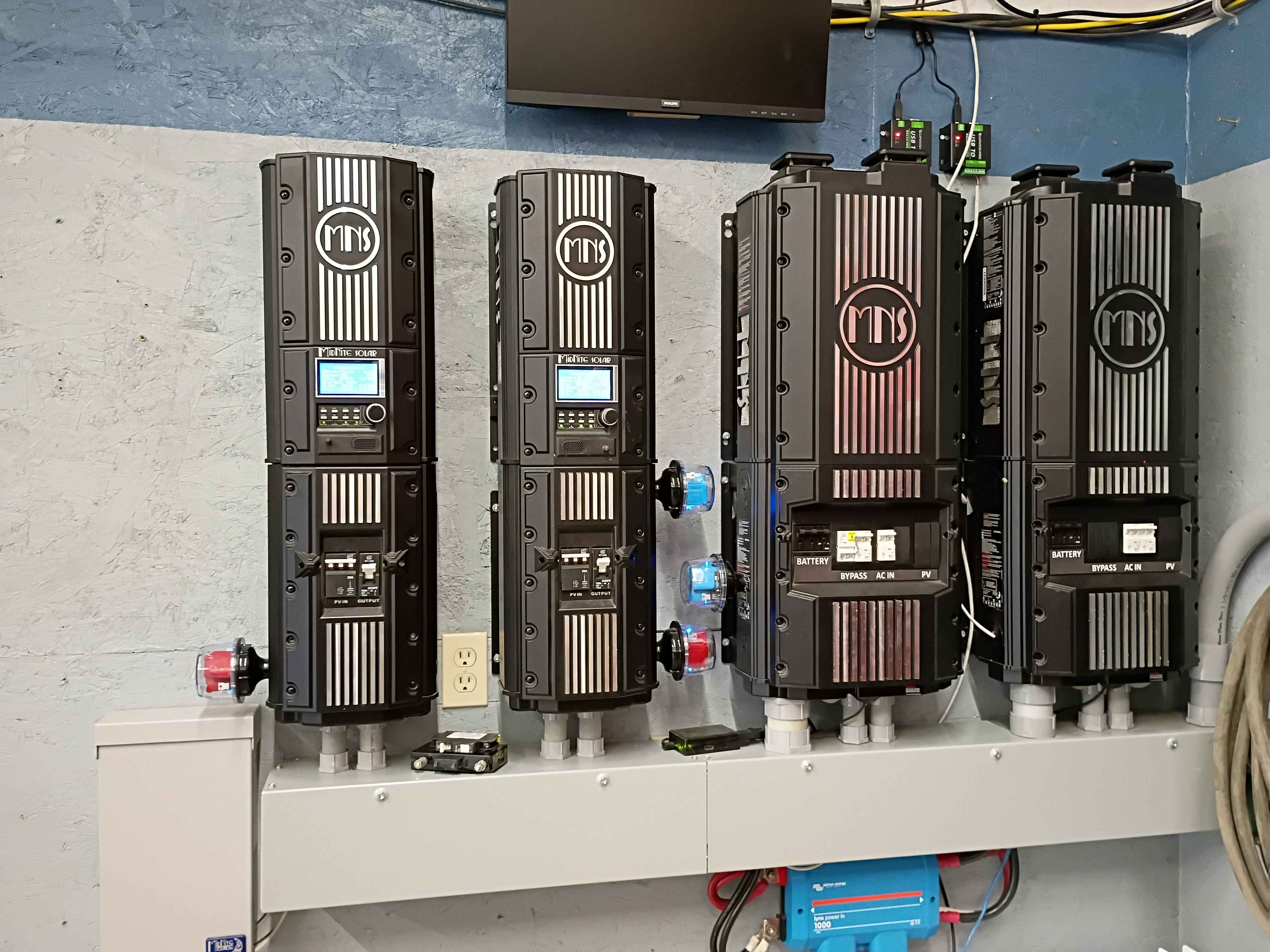

Here is a picture of my dual Rosie system. With backplates you can use a 6" gutter but you will need to space it 1" out, as pictured. Ideally an 8" gutter would be suitable.

Sue Stankevitz

MidNite Solar, Inc.

(360) 403-7207 (XT122)

-----Original Message-----
From: RE-wrenches <re-wrenches-bounces at lists.re-wrenches.org> On Behalf Of Jeremy Rodriguez via RE-wrenches
Sent: Tuesday, August 26, 2025 9:47 PM
To: re-wrenches at lists.re-wrenches.org
Cc: Jeremy Rodriguez <allsolarjeremy at msn.com>
Subject: [RE-wrenches] Multiple Rosie Installs

Wrenches
 If anyone has installed multiple Midnite Rosie Inverters with the MNS EPanels can you share some photos?
I’m getting ready to set up a system and I’m looking for ideas. Should I use 12x12 Gutters? Maybe smaller?
We will have multiple MP Powerlo 16 batteries as well. All on one common wall.
Thanks in advance


Jeremy Rodriguez
Solar Installation / Design
All Solar, Inc.
1453 M St.
Penrose Colorado 81240

Sent from Jeremy's iPhone.
