[RE-wrenches] Another SolArk issue, this time re Data Monitoring

[Christopher Warfel]

because the owner does not have the money now to install batteries

On 6/19/2025 2:39 PM, Dave Angelini Offgrid Solar wrote:
>
> Why would you not use a battery?  I get it that this has the grid,
> but, why?
>
>
>
> *Dave Angelini Offgrid Solar "we go where powerlines don't"
> <http://members.sti.net/offgridsolar/>https://offgridsolar1.com/
> <https://offgridsolar1.com/><http://members.sti.net/offgridsolar/>
> e-mail offgridsolar at sti.net text 209 813 0060*
>
>
> On 2025-06-19 11:09 am, Christopher Warfel via RE-wrenches wrote:
>
>> Maybe this is something you all know, but I did not.  I put in a
>> SolArk system w/o batteries for now. I spent so much time trying to

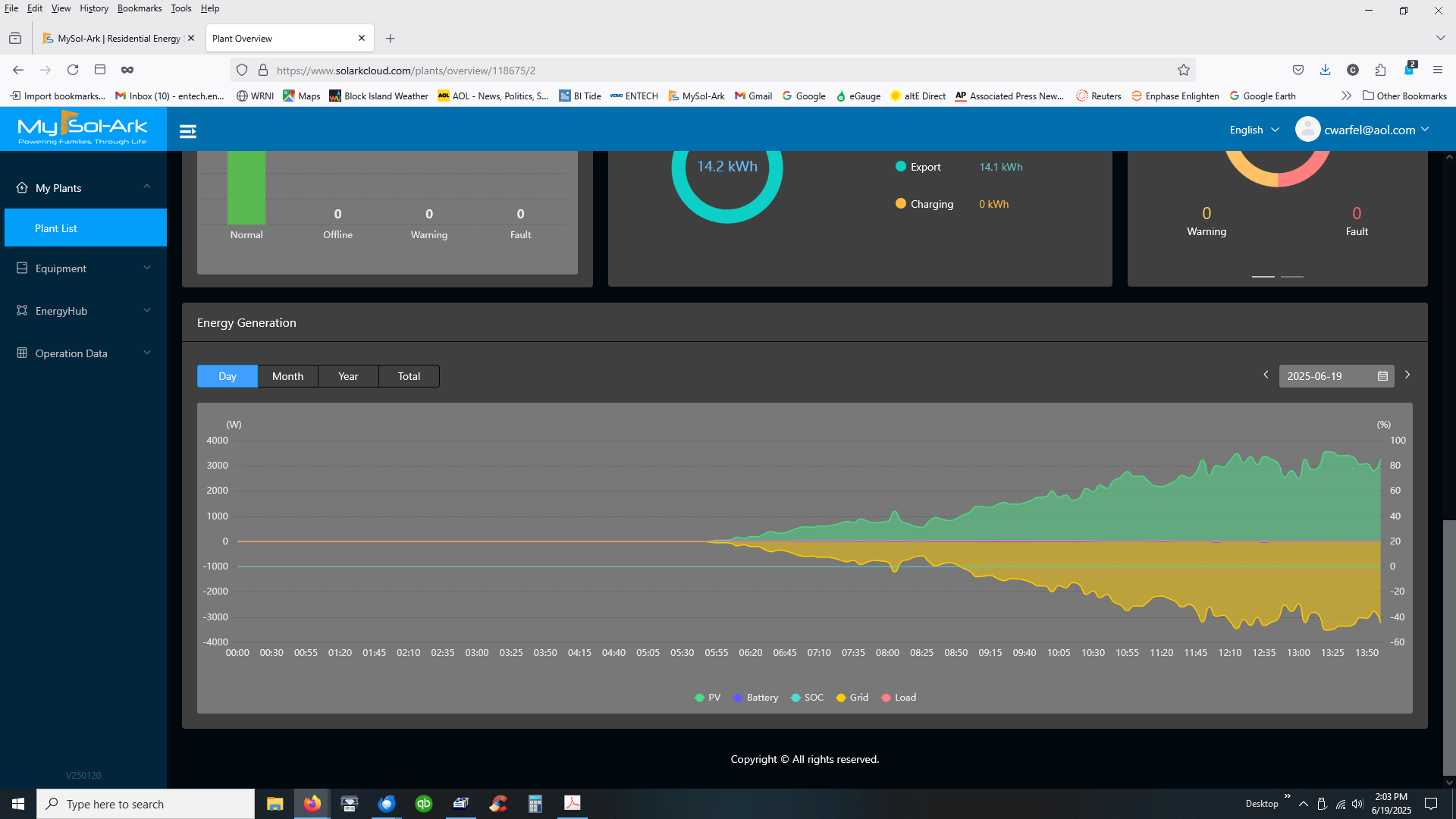

>> understand why the DAS did not record import/export of power. The
>> generations data exactly mimicked the utility data but in reverse,
>> even at night, which led me on a wild goose chase.
>>
>>
>> I have been told that because the CTs are dc powered, they cannot do
>> this.......... And I am the first person so passionate about this.
>>
>> I told them that this issue was not in the manual, that the CTs would
>> not provide load data w/o batteries, and they agreed.
>>
>> I want to ask if anyone can tell me that this is how other inverters
>> similar to SolArk work?  I spent such a large amount of time that
>> appears unnecessary with a better manual.
>>
>>
>> Thank you, Chris
>>
>> --
>> Christopher Warfel, PE
>> ENTECH Engineering, Inc.
>> PO Box 871, Block Island, RI 02807
>> (401) 447-5773
>>
>> _______________________________________________
>> List sponsored by Redwood Alliance
>>
>> Pay optional member dues here: http://re-wrenches.org
>>
>> List Address: RE-wrenches at lists.re-wrenches.org
>>
>> Change listserver email address & settings:
>> http://lists.re-wrenches.org/options.cgi/re-wrenches-re-wrenches.org
>>
>> There are two list archives for searching. When one doesn't work, try
>> the other:
>> https://www.mail-archive.com/re-wrenches@lists.re-wrenches.org/
>> http://lists.re-wrenches.org/pipermail/re-wrenches-re-wrenches.org
>>
>> List rules & etiquette:
>> http://www.re-wrenches.org/etiquette.htm
>>
>> Check out or update participant bios:
>> http://www.members.re-wrenches.org
>>
--
Christopher Warfel, PE
ENTECH Engineering, Inc.
PO Box 871, Block Island, RI 02807
(401) 447-5773
