[RE-wrenches] SMA SI Temp sensor + password

[William Miller]

Andrew:

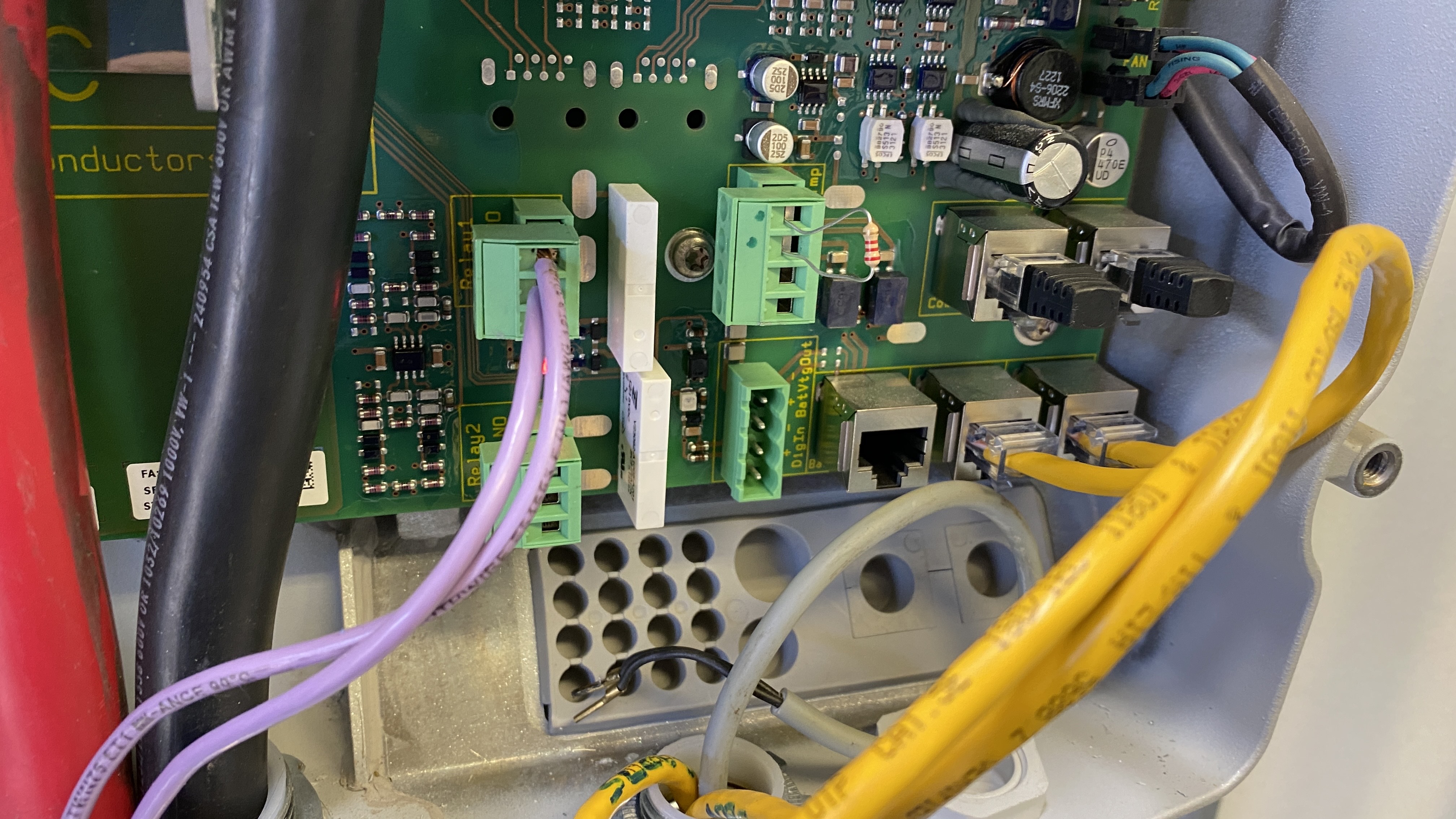

If the temp sensor fails the system will shut down.  As a temporary measure
you can put a 2.2k resister across the temp sensor terminals.  This
simulates a temperature of about 70 Degrees F. See attached.



The manual section 10.5 on page 88 describes menu 280 and how to calculate
a password based on operating hours.  If you don’t have a manual it can be
found here
<https://files.sma.de/downloads/SI4548-6048-US-BE-en-21W.pdf?_gl=1*zxtcbt*_gcl_au*MTk2NjY3MzMwMC4xNzQ4OTEwMDk3>
.



William Miller



Miller Solar

17395 Oak Road, Atascadero, CA 93422

805-438-5600

www.millersolar.com

CA Lic. 773985





*From:* RE-wrenches [mailto:re-wrenches-bounces at lists.re-wrenches.org] *On
Behalf Of *Andrew Perkins via RE-wrenches
*Sent:* Monday, June 2, 2025 4:23 PM
*To:* Re Wrenches
*Cc:* Andrew Perkins
*Subject:* [RE-wrenches] SMA SI Temp sensor + password



Anyone know where I can find a new temp sensor for an SMA Sunny Island?
None of my vendors seem to have one. Also does anyone recall the default
password? I want to say it was 1111 or 0000.. yay solar trailers.



Andrew Perkins
Greenwired
Purchasing Manger | Technical sales
P: 707-923-2001 ext. 100
M: 707-932-5595
1150 #1 Evergreen Rd
P.O. Box 1686
Redway, CA 95560
www.greenwired.com
