[RE-wrenches] Cell damage leading to ground fault?

[Dave Tedeyan]

Hello,

There is an installation that I am servicing with the Q.Peak G4 modules,
where one cell has some visible damage. I am wondering whether this type
damage can lead to a ground fault? The Fronius inverter on site is picking
up an "Insulation Resist" error. I am wondering whether this could be the

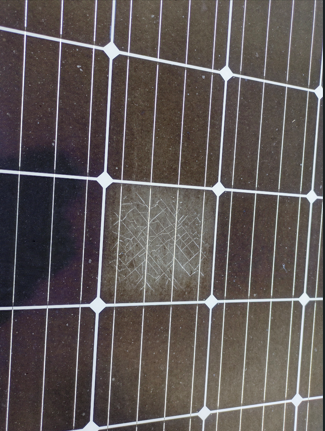

cause, or whether I should look elsewhere in the array. A photo is
attached. Any thoughts would be appreciated.

Thanks!
Dave

--

[image: Logo] <https://www.sungineersolar.com/>
Dave Tedeyan, P.E.
Owner | Sungineer Solar
p: he | him | his
a: 1653 Slaterville Rd. | Ithaca, NY 14850
w: www.sungineersolar.com <http://www.sungineersolar.com/>
c: (607) 270-0370
