[RE-wrenches] AP smart

[David Buckner]

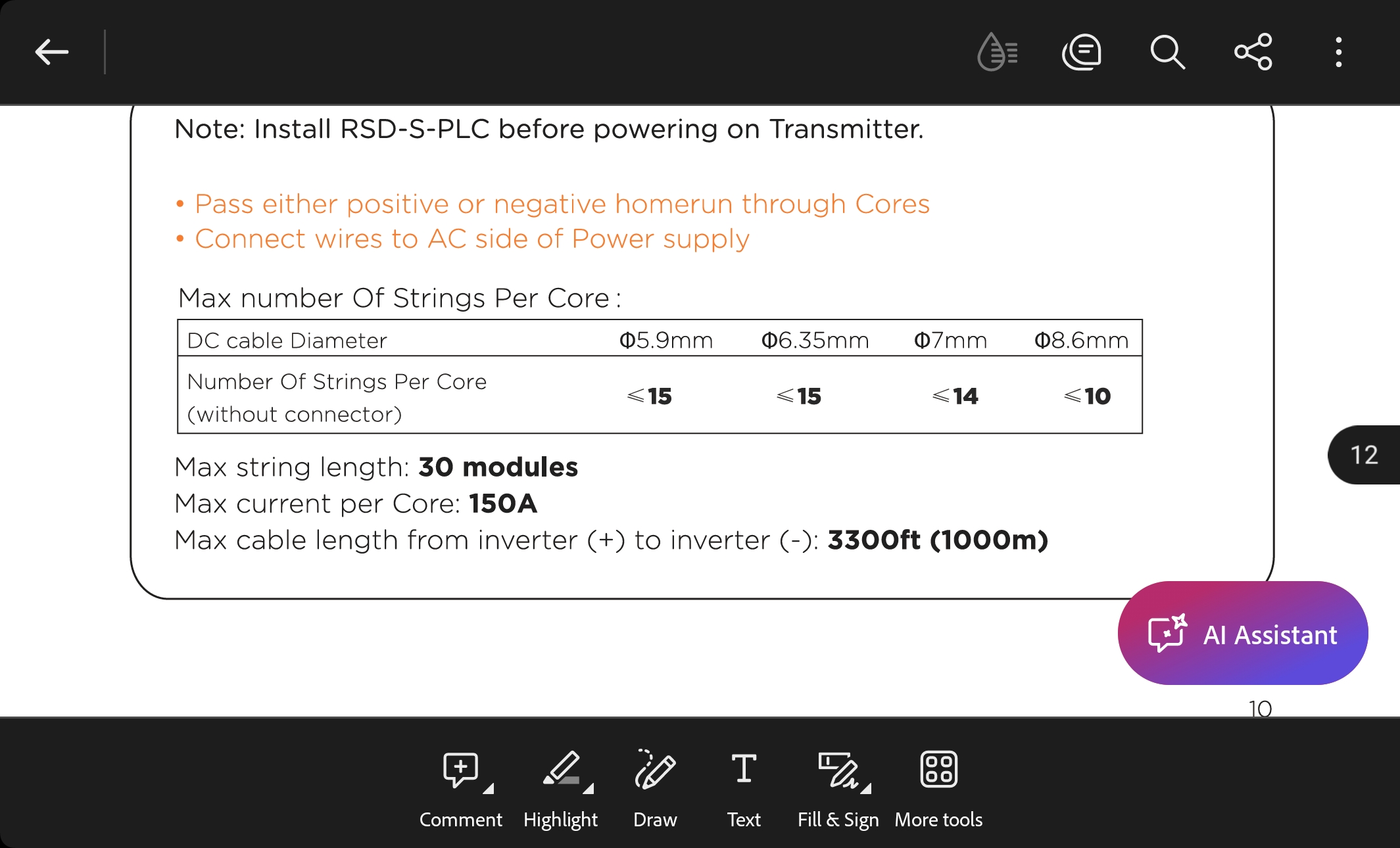

I'm reading 1000M or 3300 FT.  See attached.  But that's not the linear distance from array ti inverter, it's the length of the entire string's cable from positive terminal to negative terminal.  Include the slack in the module to module connections as well.

David



David Buckner
President
Solar Energy Systems
917-848-0215
718-389-1545
dbuckner at solaresystems.com
www.solaresystems.com
41 Box Street 2nd Floor, Brooklyn, NY 11222
The information contained in this email message, including any attached files transmitted, is confidential and may be legally privileged. It is intended for the sole use of the individual(s) named above. If you are the intended recipient, be aware that your use of any confidential or personal information may be restricted by state and federal privacy laws. If you, the reader of this message, are not the intended recipient, you are hereby notified that you should not further disseminate, distribute or forward this email message. Email transmission cannot be guaranteed to be secured or error-free as information could be intercepted, corrupted, lost, destroyed, arrive late or incomplete, or contain viruses. The sender therefore does not accept liability for any errors or omissions in the contents of this message, which arise as a result of this e-mail transmission. If you have received this email in error, please notify the sender and immediately delete the material from your computer system. Thank you.
________________________________
From: RE-wrenches <re-wrenches-bounces at lists.re-wrenches.org> on behalf of rick--- via RE-wrenches <re-wrenches at lists.re-wrenches.org>
Sent: Monday, February 24, 2025 7:04 PM
To: RE-wrenches <re-wrenches at lists.re-wrenches.org>
Cc: rick at solshineenergy.com <rick at solshineenergy.com>; RE-wrenches <re-wrenches at lists.re-wrenches.org>
Subject: Re: [RE-wrenches] AP smart

CAUTION: External Email.
Specs say 1000 ft or 300 meters.

Rick Brown
Solshine Energy
Solar Electric Contracting Services
www.solshineenergy.com
Roanoke, VA
Office: 540.235.3095
Mobile: 540.808.9502

CONFIDENTIALITY NOTICE -- This email is intended only for the person(s) named in

the message header. Unless otherwise indicated, it contains information that is

confidential, privileged and/or exempt from disclosure under applicable law. If you have

received this message in error, please notify the sender of the error and delete the

message. Thank you.


On Feb 24, 2025, at 6:58 PM, Jay via RE-wrenches <re-wrenches at lists.re-wrenches.org> wrote:

Hi all.

Does anyone know max distance between panels and inverter with ap smart?

I have a very unusual design that might happen with 2 small houses connects to 1 meter.  They want to do as much self generating as possible. But it’s 425’ from the inverter location to the only place to install panels which will be on a roof.

Thanks in advance

Jay
