Hello,

I just finished an Outback Radian on two Powerflo16 batteries.

The Midnight Powerflo16 does have a pre-charge circuit.

My experience with other batteries that do not have a pre-charge resistor control circuit helped me formulate a boot up sequence. And it works for the powerflo16 just as well. First, I turn on the breaker of the charge controller and then start the battery by turning on its breaker(s) and holding the start switch down for 3 to 5 seconds. The battery(s) will boot up. Once the charge controller wakes up, it’ll start supplying current. Then, I turn on each breaker of each half of the radian(s) with a little pause between each breaker.

Speaking of open loop! What are y’all using for LiFePO4 charging parameters?

I have been using 3.45 per cell for Absorb and 3.40 for Float. What are you using for timers, etc? I should make a separate thread.



Thank you,

Maverick

Maverick Brown
Off-Grid Solar Commander since 2006
Maverick Solar Enterprises, Inc.
 • Solar Commander Remote Power
 • SunFlow Systems Cathodic Protection
maverick at mavericksolar.com
512-460-9825



> On Nov 9, 2024, at 2:41 PM, Nick Lucchese via RE-wrenches <re-wrenches at lists.re-wrenches.org> wrote:
>
>
> Greetings Wrenches,
>
> Wondering if any of you have successfully paired the new Powerflo16 with a GS8048-A yet? There is no reason it shouldn't work yet I've unsuccessfully been to a customer's site three times now without a fix. The Radian setup had been in use with an FLA Trojan pack for years till their demise due to the client unknowingly turned off the AC input source to keep them charged for his backup system lacking PV. Network is too far away therefore I didn't have Optics otherwise I would have caught it. Have not ruled out that there may have been another fault with the Radian before all this but the AC input seemed most logical and was known to be turned off by accident previously.
>
> Upon closing the Powerflo battery breaker to inverter the Mate3s lights up momentarily while briefly receiving full voltage but then DC voltage sinks to around 2-18vdc then either trips the breaker on the Powerflo16 or lights up the fault indicator. Spoke with Midnite support and they recommended a workaround to the BMS pre-charge boot up process but that didn't resolve the issue either. I originally thought it must be a failed Spare215 power supply board but after swapping there was no effect. Next return trip I brought a Rosie with me and everything powered up just fine so I then figured it would be the Spare 204 board stack but had the same exact effect when I tried that swap today. My next step is returning to swap the Spare-205 power control modules but first I'm going to unbox another Powerflo16 at my shop and pair it with a brand new Radian that has not yet been cannibalized. I've installed 42 Radians and only had two with failed Spare-205 control modules but each time it was a similar outcome with them being the last thing I swapped to success.
>
> I'm thinking it must be a failed Spare-205 but since the Powerflo has only been shipping for a couple months I just wanted to run this by the group to see how many have successfully paired these two components at this point. The Radian is still under warranty but that seems pretty meaningless at this point. One way or another this job is going to be a loss at this point but oddly still having fun working through a new head scratcher.
>
> Thanks for any insight, Nick
>
> _______________________________________________
> List sponsored by Redwood Alliance
>
> Pay optional member dues here: http://re-wrenches.org
>
> List Address: RE-wrenches at lists.re-wrenches.org
>
> Change listserver email address & settings:
> http://lists.re-wrenches.org/options.cgi/re-wrenches-re-wrenches.org
>
> There are two list archives for searching. When one doesn't work, try the other:
> https://www.mail-archive.com/re-wrenches@lists.re-wrenches.org/
> http://lists.re-wrenches.org/pipermail/re-wrenches-re-wrenches.org
>
> List rules & etiquette:
> http://www.re-wrenches.org/etiquette.htm
>
> Check out or update participant bios:
> http://www.members.re-wrenches.org
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://lists.re-wrenches.org/pipermail/re-wrenches-re-wrenches.org/attachments/20241109/4f86f561/attachment-0001.htm>
-------------- next part --------------
A non-text attachment was scrubbed...

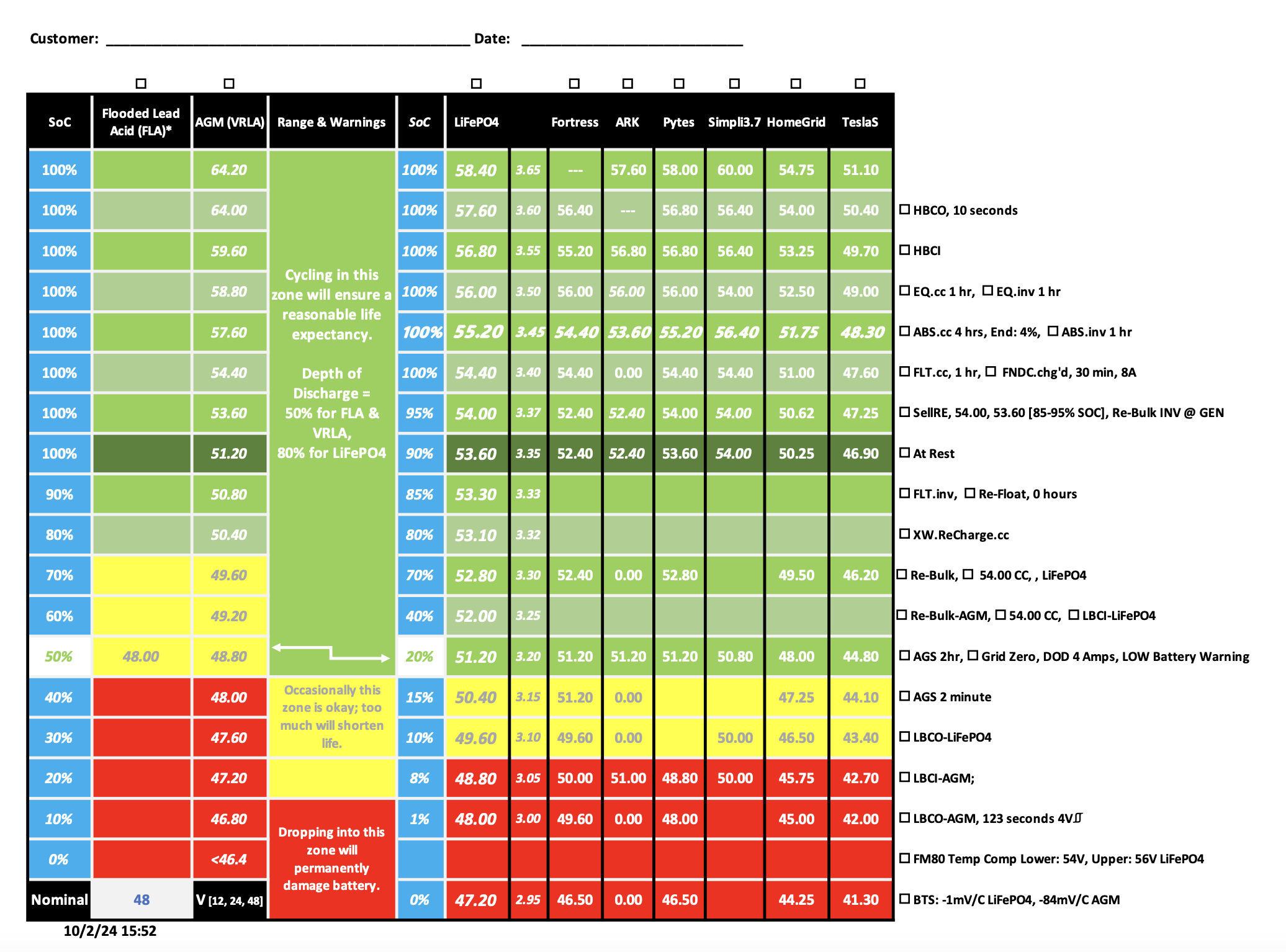

Name: Battery SOC  Map 241002.png
