Hello All,

I have a local utility with a 50Kw array installed in 2015 consisting of
200 ReneSola 250w modules and 3 SMA Tripower 15000TL-US -10. They are
having Arc fault code on two of the inverters. This has been going on
for a few years now. It happens a couple times a year generally after a
large rain. They just reset the code and it comes back to life.

They gave me a walk through and we noticed that a number of modules have

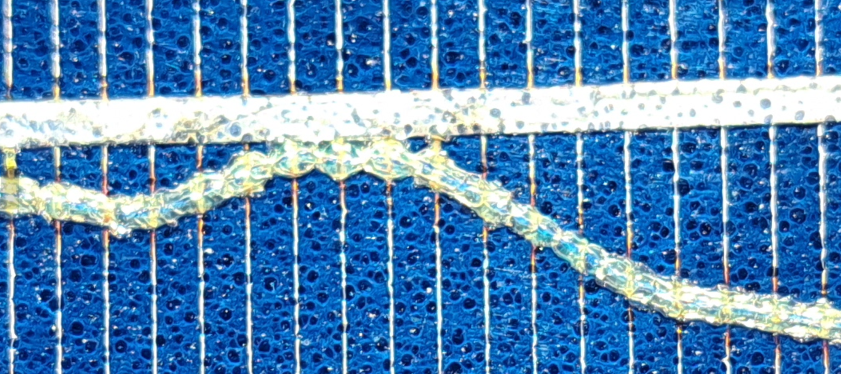

snail trails. I have attached a closeup picture I took and IR views of
affected module and non affected. It was a 90 deg day when the utility
took the IR pictures.

Causes for snail trails that I found:

  * The difference in chemical properties of EVA foils and the silver
    contacts
  * The degradation extent of the EVA material
  * Water vapor permeability of the solar panel’s backsheet material

I did find that if you have snail trails you will have micro fractures.
I did see some info that micro fractures could cause arc faults.

Finally my question is can snail trails cause arc faults also?


Thanks Jon

--
Jonathan Dixon
Dixon Power Systems
3250 N 20th St  Ste 1
Lincoln, NE 68521
402-467-3240
jon at dixonpowersystems.com
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://lists.re-wrenches.org/pipermail/re-wrenches-re-wrenches.org/attachments/20241023/0540ce34/attachment-0001.htm>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Closeup 2024-10-17-1.png
Type: image/png
Size: 791728 bytes
Desc: not available
URL: <http://lists.re-wrenches.org/pipermail/re-wrenches-re-wrenches.org/attachments/20241023/0540ce34/attachment-0003.png>
-------------- next part --------------
A non-text attachment was scrubbed...

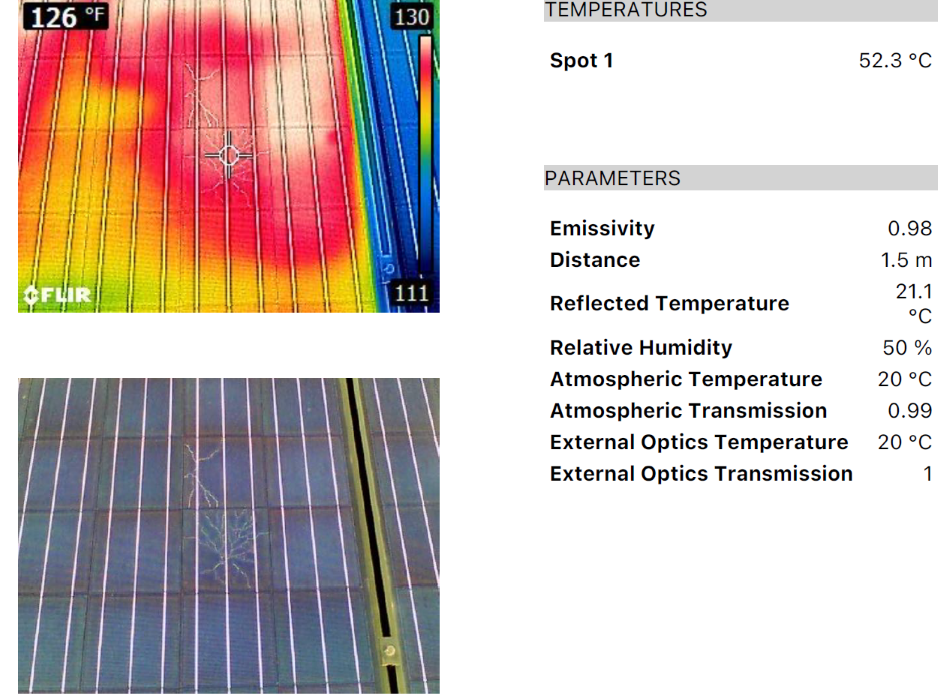

Name: Snail Trails 2024-10-17.png
Type: image/png
Size: 669011 bytes
Desc: not available
URL: <http://lists.re-wrenches.org/pipermail/re-wrenches-re-wrenches.org/attachments/20241023/0540ce34/attachment-0004.png>
-------------- next part --------------
A non-text attachment was scrubbed...

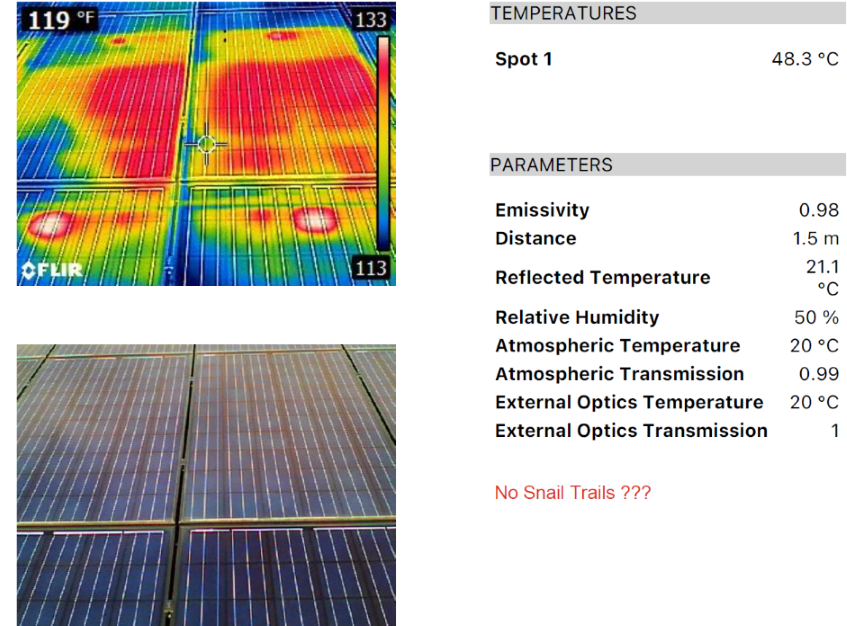

Name: No Snail Trails 2024-10-17.png
