[RE-wrenches] Failed Enphase End Cap

[Christopher Warfel]

I don't know if of interest, but we had 2 subarrays, with one having a
hard bolted fault it appeared. It occurred around the same time the
customer's meter enclosure fell apart. The second subarray continued to
operate as expected after meter enclosure replaced.  Did all trouble
shooting I could think of from the ground and the conclusion was it was

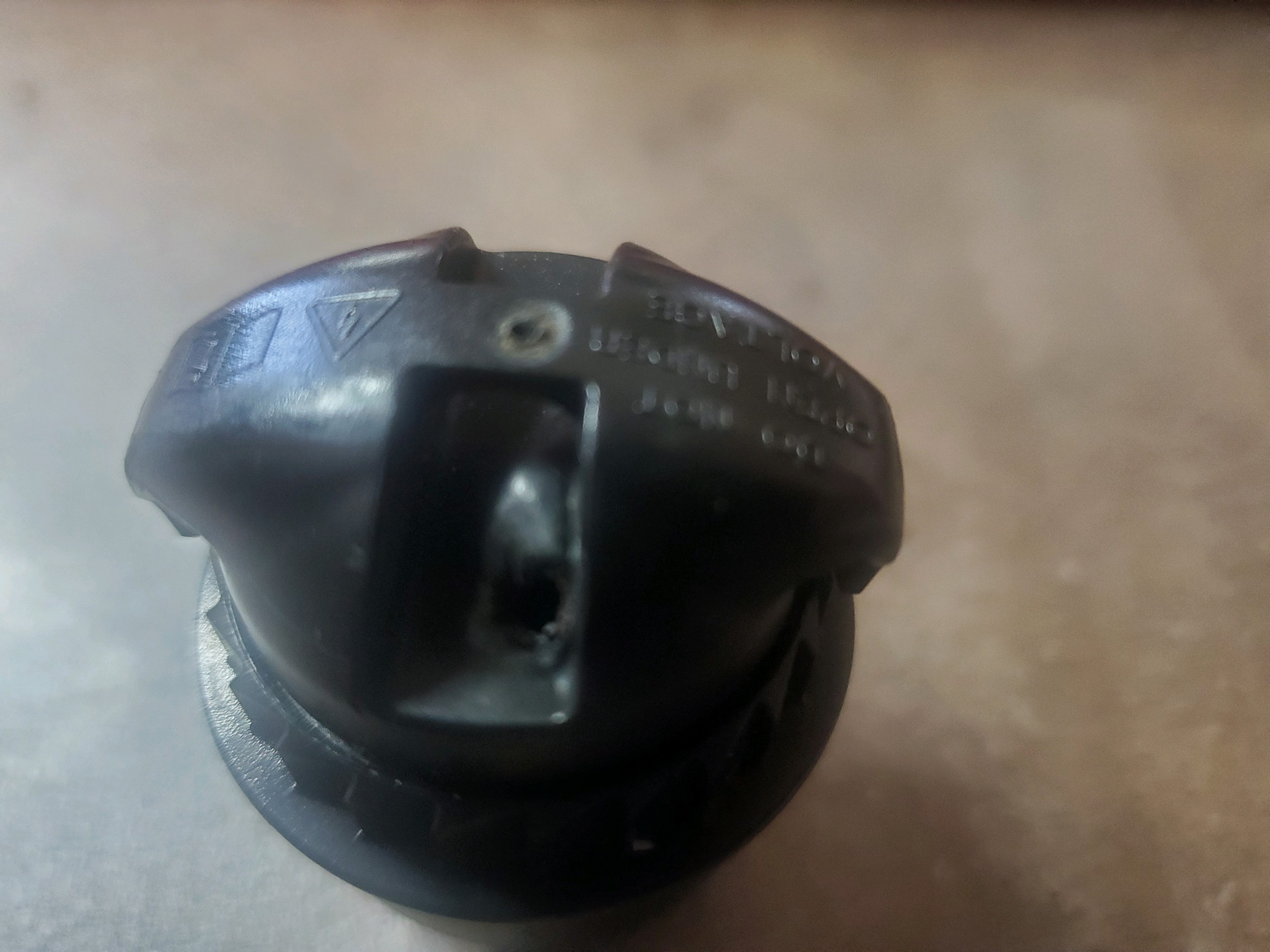

on the roof. This was found before we removed any modules. Shorted
through the cap (lower hole in cap).  The system operated very well for
four years.


Chris


       🙁

--
Christopher Warfel
           ENTECH Engineering Inc.
    PO Box 871, Block Island, RI 02807
                   401-477-5773
