Hi:

One thing which has come up a lot since the solar industry really took off
in the last 10 years is that of corrosion and degradation of exposed metal
on racks and modules.

Corrosion due to dissimilar metals, aka galvanic corrosion, is due to the
natural characteristics of the metals.

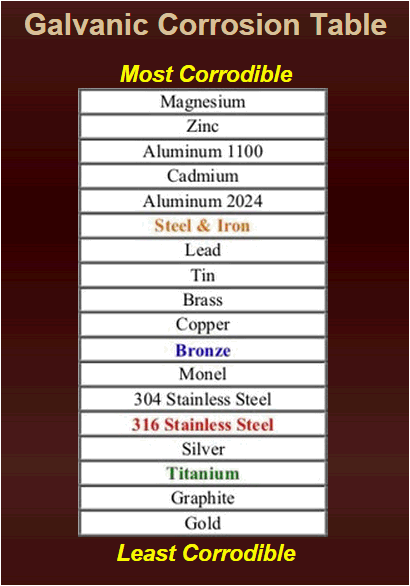

To get a relative sense of the magnitude of the problem, all the metals
can be stacked up in table where at one end are the metals which don't
corrode and the other, the ones which do.

With this layout, the farther apart they are in table, the faster the
corrodible metal will corrode.  (This shows that zinc is a good
sacrificial metal for every other metal except Magnesium).

There is another effect which is at least as, or in some cases even more
significant.  That is the dissimilar coefficients of thermal expansion.
The table below lists a bunch of common metals.  The units for the numbers
are, micro-meters per meter per degree Celsius.

Most Expansive

Zinc
30
Cadmium

30

Lead

28

Magnesium

25

Tin

23

Aluminium

22

Silver

20

Brass

19

Copper

16

Stainless Steel

16

Gold

14

Steel/Iron

11

Titanium

8

Graphite

8

Least Expansive

As in the previous table, the farther apart the metals are the worse is
the situation as the metals are cycled through mid winter lows to high
noon summer temperatures.  You can also see that steel/iron has an issue
with almost every other metal.

One way to deal with the galvanic corrosion is by having a zinc coating or
perhaps zinc anodes up in the framework in such a place so that the zinc
residue will run down the posts as the zinc oxidizes.

With the thermal expansion, the use of rubber/plastic/nylon bushings will
allow for thermal cycling without allowing metal fatigue and/or damage.

In the case of iron, the galvanic potential between itself and aluminium
is virtually non-existent.  It's the thermal expansion which messes things
up.  Using bushings gives flexibility at the joint to allow for
non-detrimental thermal expansion cycling.

One other related thing to note is the the thermal coefficient of
expansion for masonry is in the range of 3-4.  That's a lot different than
aluminium, so the "rubbery" joints help a lot in this case.

JARMO

_____________________________________________________________________________________

Jarmo Venalainen  |   Schneider Electric   |  Xantrex Brand  |   CANADA  |
  Sales Application Engineer
Phone: +604-422-2528  |   Tech Support: 800-670-0707  |   Mobile:
+604-505-0291
Email: jarmo.venalainen at schneider-electric.com  |   Site: www.Xantrex.com
|   Address: 3700 Gilmore Way, Burnaby, BC V5G4M1

*** Please consider the environment before printing this e-mail

From:
RM You <solareagle at solareagle.com>
To:
RE-wrenches <re-wrenches at lists.re-wrenches.org>,
Date:
05/28/2015 07:21 PM
Subject:
[RE-wrenches] iron & aluminum
Sent by:
"RE-wrenches" <re-wrenches-bounces at lists.re-wrenches.org>

Hi Wrenches, I have had a couple of customers want to fabricate their own
PV pole mounts and racks out of iron. Aside from the galvanic corrosion
and weight issues is there anything else I should caution these guys
about? Any stories about failures etc? My druthers are to stay with the
engineered aluminum pole mounts but when you’re dealing with someone with
fabrication experience and the cost for pre-fab is high then the obvious
outcome occurs. If the unit is properly treated/painted I imagine it could
last many years. Is there a way to attach an anode to such a rack or would
simple non conductive insulation between panels and rack be the best
answer?

Ron Young
